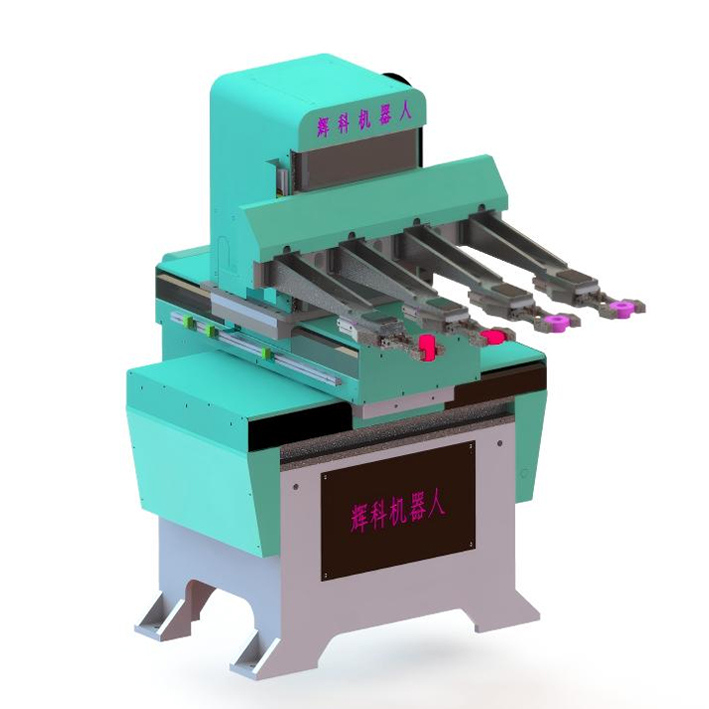

The walking beam Forging Robot in Automated Automotive Parts Forging Production Lines is a highly integrated automated system designed for workpiece handling and loading/unloading operations under high-temperature and high-load conditions, widely used in the intelligent manufacturing processes of precision forged components such as gears, shafts, and connecting rods.

The system typically consists of a servo-driven articulated arm, heat-resistant grippers, a PLC control system, and safety protection modules. It integrates seamlessly with equipment such as induction heaters, hot die forging presses, and friction presses, enabling full-process automation from blank loading, heating, and forging to finished part unloading.

Key Advantages:

High-Precision Positioning: Utilizes servo control and multi-axis synchronized motion technology, achieving a repeatability positioning accuracy of ±1 mm, ensuring precise placement of forgings into dies.
High-Efficiency Cycle Synchronization: Short response time—completed in 1–2 seconds for gripping and transfer—enables synchronization with high-speed forging equipment, increasing single-line productivity by over 30%.
Safe and Reliable Operation: The robot operates stably in high-temperature (800–1200 °C) and high-dust environments, eliminating the risk of burns to personnel and enabling 24-hour unattended production.
Robust and Durable Structure: Critical components are manufactured using casting processes to enhance mechanical strength; the control system features electromagnetic interference and thermal radiation protection, ensuring reliability in harsh industrial environments.

A representative example is the four-axis walking beam forging robot developed by Dongguan Fityou Robot Automation, which supports flexible programming and is suitable for diverse operating conditions. It has been widely adopted in automated forging production lines for standard parts such as bearing rings, flanges, and nuts.
